Description

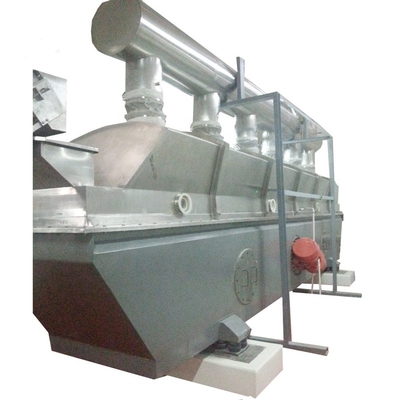

Material is fed into the dryer from feeding port, under the action of vibrating force, material moves forward with the fluidized state continuously along the horizontal direction. Hot air passes through fluid bed from bottom to up and does heat exchange with damp material. After the powder is collected by cyclone separator, damp air is exhausted out. Dried product is discharged from discharging port.
Application
Organics: oxalic acid, succinic acid, hydroquinone, p-nitrobenzoic acid, fumaric acid, pentaerythritol, resorcinol, catechol, calcium hypochlorite, sodium silicate, GDL, sodium gluconate, thiourea, sorbitol, dicyandiamide, iminodiacetonitrile, itaconic acid
Fertilizer: potassium dihydrogen phosphate, calcium hydrogen phosphate, monoammonium phosphate, ammonium sulfate, magnesium sulfate heptahydrate
Pesticides: Imidacloprid granules, granules glyphosate
Polymer: High-absorbent resin, a polystyrene resin, sodium polyacrylate
Chemical additives: methyl cellulose, polyacrylamide, hydroxyethyl cellulose
Food and beverage industry:L-arabinose, acesulfame, erythritol, trehalose, caramel, tartaric acid, coffee, bread crumbs, milk powder, citric acid, potassium citrate, sodium citrate , maltitol, xylose, xylitol, Ru refined, sugar, potassium sorbate, salt, sodium saccharin, monosodium glutamate, sodium iso-VC,
Pharmaceutical medical industry:honeysuckle, paracetamol, taurine, vitamin C
Animal husbandry and fishery industry:canola ,seeds
Technical parameters
|
Model (ZLG) |
Area of fluid bed (m2) |
Inlet air temperature(℃) |
Outlet air temperature (℃) |
Water evaporation(kg/h) |
Vibrating motor |
|
|
Model |
Power(k w) |
|||||
|
4.5×0.3 |
1.35 |
70-140 |
40-70 |
35-50 |
ZDS31-6 |
0.8×2 |
|
4.5×0.45 |
2.025 |
70-140 |
40-70 |
50-70 |
ZDS32-6 |
1.1×2 |
|
4.5×0.6 |
2.7 |
70-140 |
40-70 |
70-90 |
ZDS32-6 |
1.1×2 |
|
6×0.45 |
2.7 |
70-140 |
40-70 |
80-100 |
ZDS41-6 |
1.5×2 |
|
6×0.6 |
3.6 |
70-140 |
40-70 |
100-130 |
ZDS41-6 |
1.5×2 |
|
6×0.75 |
4.5 |
70-140 |
40-70 |
120-140 |
ZDS42-6 |
2.2×2 |
|
6×0.9 |
5.4 |
70-140 |
40-70 |
140-170 |
ZDS42-6 |
2.2×2 |
|
7.5×0.6 |
4.5 |
70-140 |
40-70 |
130-150 |
ZDS42-6 |
2.2×2 |
|
7.5×0.75 |
5.625 |
70-140 |
40-70 |
150-180 |
ZDS51-6 |
3.0×2 |
|
7.5×0.9 |
6.75 |
70-140 |
40-70 |
160-210 |
ZDS51-6 |
3.0×2 |
|
7.5×1.2 |
9 |
70-140 |
40-70 |
200-260 |
ZDS51-6 |
3.0×2 |
Q: Why we believe in YINUO DRYING ?
1. More than 20 years experience.
2. YINUO is the leading professional supplier of solution, equipments and service for drying, mixing, crushing, screening and airflow conveying industry.
3. All products achieved ISO9001:2000 quality management certificate and EU CE certificate.
Q: Delivery time
A: The lead time is 10-70 days, Delivery time will vary depending on the type of the machine, shipping method selected and part availability.
Q: Payment terms
A: Accepted Payment Type: T/T, L/C, Western Union, Cash
After sign the contract, pay the 10%-30% deposit of total purchase price and pay the full payment before delivery but after inspection.
Q: Packing of goods
A: 1.Sand blasting, coat with high quality paint;
2.Product wrap by PP-Bubble
3.Load container, Spear Parts in wooden case.
Q: How is quality warranty?
A:Guarantees the machines are new (or unused) and the guarantee period will be 12(twelve) months. During this period, the seller will provide free maintenance and free spare parts that caused by the machine’s quality.
Q: What will you do if the machine is broken down after guarantee period?
A: We will provide the technical advice and find the solution immediately for you when the machine is in trouble. For those wear parts, we guarantee the high quality parts for long-term supply.
Q: What should I do if I want to get a best quotation?
A: If you want a suitable type of machine for you, we would like to get the following information:
What is the raw material name?
Material related characteristic? Does it corrosive, strong basicity, or highly acid?
What is the capacity per hour you need (kg/h)?
What is the initial moisture and final moisture of finished products you require to get?
What about the maximum heat temperature of raw material?
What kind of heating way you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
Provide us your country’s power supply,such as phases, voltage, HZ?
Q: Is installation service free?
A: Yes, each machine from our company, we supply free installation.
We will help you to design, install and deliver your plant to get the best possible performance out of your equipment and plant right from the start.
Q: Is training service free?
We will train your staff and offer you standard training packages on your site for free.
training includes:
Safety training
Operator training
Technical/maintenance training
Machine process training
